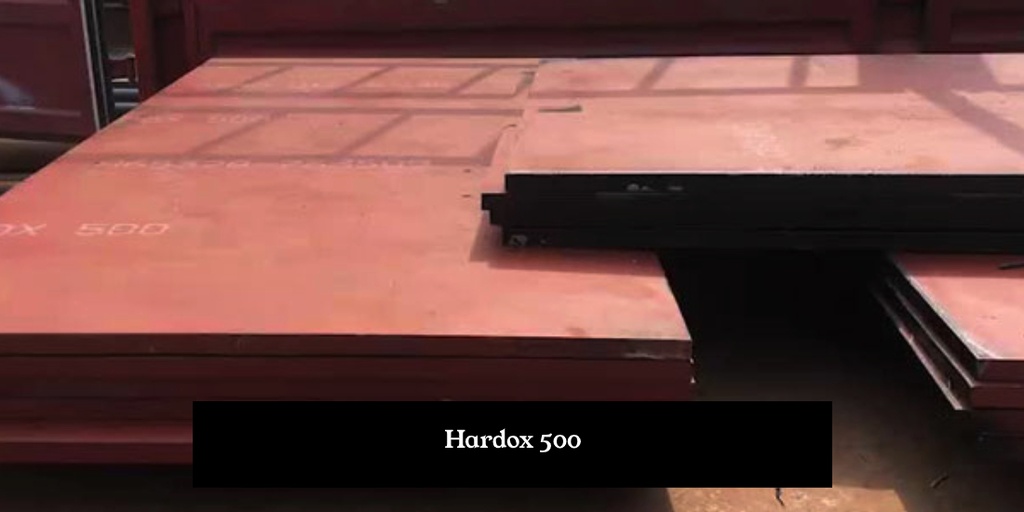

Hardox 500

Hardox 500

Hardox 500 Plate can easily be bended and welded. These plates are resistant to abrasion and is widely used in various applications that require higher wear resistance. Further, the plates are designed with a hardness of 500 HBW for applications where demands are imposed on abrasion resistance in combination with good cold bending properties. Our respected clients can also avail this range in various sizes and finishes as per their requirements.

HARDOX 500 Plates are the steel sheets that wear superior resistance. These plates are weldable, bendable and are highly resistant to abrasion with the hardness of 500 HBW. Thus these plates are appropriate for those applications where higher resistance is required. The plates do not lose its collision resistance even at low-temperature circumstances. The hardox 500 offers higher payload and long term service life. Even more, these have superb strength and toughness that makes to withstand in severe environments.

  • Size

This combination does not exist.

All our Products come with 6 Months Warranty Period
Free Shipping If the Order is above INR 10,00,000
Buy now, Product can be Shipped Immediately

Hardox 500

Hardox 500 Tuf adds new levels of productivity and cost-efficiency in mining. Handling blasted rock and ore in a mining tray is not only highly abrasive, it also needs a steel that can take heavy impact. Hardox 500 Tuf has a typical hardness of 500 HBW for high wear resistance. What makes Hardox 500 Tuf special is it combines high hardness with high toughness, with guaranteed narrow Brinell hardness range of 475-505 HBW. The wear plate has a guaranteed impact energy of 27 J at -20°C (20 ft-lb at -4°F) and a typical value of 45 J at -40°C (33 ft-lb at -40°F), making it the optimal choice for mining in cold and freezing conditions. See how Austin Engineering makes its mining bodies 25% lighter.

Hardox 500 is a bendable and weldable abrasion-resistant steel, with a nominal hardness of 500 HBW. Suitable for applications that demand higher wear resistance. Hardox 500 increases payload and increases service life while maintaining good processability and toughness. Hardox 500 is available in thicknesses of 4.0 – 103 mm. Hardox 500 is available in widths up to 3350 mm and lengths up to 14630


Features :

  •  Abrasion Resistance
  •  Welding ability
  •  Wear Resistant
  •  High tensile strength

Hardox 500 Application Industries :

  •  Mining And Quarrying
  •  Process Industries
  •  Material Handling And Construction
  •  Earthmoving
  •  Buffer bins
  •  Grizzly bars
  •  Measuring bins and Skips
